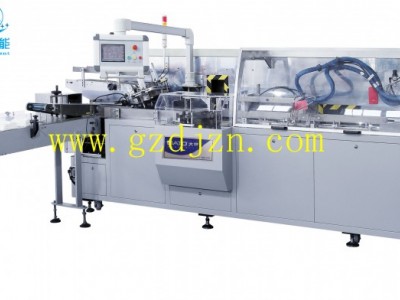

Multifunctional Automatic Large-sized Cartoning Machine
雪糕装盒机，甜筒装盒机，冰棒装盒机，蛋糕装盒机
适用范围：
制药行业：药板、口服液、安瓶、西林瓶、袋装颗粒、贴膏、软膏、气雾剂等；
食品行业：雪糕、蛋卷、面包、袋装咖啡、调料包、奶粉等；
日化行业：牙膏、香皂、化妆品、面膜、面霜、唇膏、蚊香等；
五金电器：轴承、灯泡、开关、插座、继电器、充电器等；
汽配行业：火花塞、滤清器、活塞环、汽车灯泡、汽车电器等；
塑料行业：保鲜膜、一次性薄膜手套、塑料制品等；
文娱行业：笔、订书机、订书钉、印泥、胶水、修改液、扑克牌、拼图、玩具、工艺品等；
生活用纸：纸面巾、卫生巾、护垫、化妆棉等；
Application range:
Pharmaceutical industry: tablet, oral liquid, ampoule, vial, bagged granule, plaster, unguent, aerosol, etc.
Food industry: ice cream bar, egg roll, bread, bagged coffee, seasoning packet, milk powder, etc.
Daily chemical industry: toothpaste, soap, cosmetics, facial mask, cream, lipstick, mosquito coil incense, etc.
Hardware & electrical equipment: bearing, bulb, switch, socket, relay, charger, etc.
Automobile fittings industry: spark plug, filter, piston ring, automobile bulb, automobile electrical equipment, etc.
Plastics industry: cling film, plastic products, etc.
Entertainment industry: pen, stapler, inkpad, glue, correction liquid, poker, jigsaw puzzle, toy, artwork, etc.
Life paper: paper towel, sanitary towel, pad, cotton pad, etc.
主要性能结构特点：
采用自动送料、开盒、入盒、打批号、封盒、剔废等的包装形式，结构紧凑合理，操作调整简单；
采用伺服/步进电机和触摸屏、PLC可编程控制系统，人机界面显示操作更清晰简便，自动化程度高，更具人性化；
采用光电眼自动检测跟踪系统，空包不下盒，限度地节约了包装材料；
包装范围大，调节方便，各种规格尺寸之间可实现快速转换；
更换规格无需更换模具，只需调节即可实现；
采用物品进盒不到位自动停机和主传动电机过载保护装置，适用更安全可靠；
可根据客户要求，采用上翻式安全防护罩，操作简便，外形美观。
可与铝塑包装机、枕式包装机、三维包装机、瓶装线、灌装机、贴标机、喷码机、在线称量仪、其它生产线等设备实现联动生产；
可根据包装物要求设计各种自动下料器和入盒系统；
10、可根据客户要求选配热熔胶机，采用热熔胶喷胶封盒和机械刷胶封盒。
Main performances and structure features:
1. Packing forms such as automatic feeding, box opening, boxing, batch No. printing, box sealing, waste rejecting, etc. are adopted. Featured by compact and reasonable structure, simple operation and adjustment.
2. Servo/step motor, touch screen, PLC control system and man-machine interface display make operation more clear and convenient. With high automation degree, the machine is more user-friendly.
3. The photoelectric eye automatic detection tracking system is adopted. No boxing is made if the bag is empty, so as to save packing materials to the utmost extent.
4. With wide packing range and convenient adjustment, fast switching among various specifications and sizes can be realized.
5. Change of specifications does not need change of molds, but can be realized through adjustment.
6. Automatic stopping is available when the material boxing is not in place, and the main driving motor overload protection device is used, so that the machine is safer and more reliable.
7. According to customer requirements, the upturning type safety protective cover is adopted, which is featured by simple operation and beautiful appearance.
8. linked production with the aluminum-plastic packing machine, pillow type packing machine, three-dimensional packing machine, bottling line, filling machine, labeling machine, ink-jet printer, online weightometer and other production lines and equipment can be realized.
9. Various automatic feeders and boxing systems can be designed according to different requirements of packing materials.
10. According to customer requirements, the hot melt glue machine can be equipped, and the hot melt glue spreading and box sealing and mechanical glue brushing and box sealing can be adopted.
主要性能技术参数：
| 项目/型号Item/model | DDU-100 | DDU-/190 | |
| 包装速度Packing speed | 30-100盒/分钟boxes/minute | ||
| 纸盒尺寸范围 Size range of carton | L（100-240）mm×W（40-120）mm×H（30-80）mm | L（100-300）mm×W（40-190）mm×H（30-80）mm | |
| 纸盒纸质要求 Paper quality of carton | 300-400g/m3 | ||
| 电机功率Motor power | 1.5KW | 2.1KW | |
| 电源类型Power supply type | 三相四线380V 50Hz Three-phase four-wire 380V 50Hz | ||
| 机器噪音Machine noise | ≤80dB | ||
| 气源Air supply | 0.5-0.8 Mpa | ||
| 耗气量Air consumption | 150-200L/min | ||
| 外形尺寸Outline dimensions | L3100×W1550×H1800 mm | L3700×W2200×H1800 mm | |
| 整机重量Machine weight | 1400Kg | 1600Kg | |
注：本公司产品更新换代较快，若有变动请按实物为准，恕不另行通知！
